제어밸브/게이트밸브/
버터플라이밸브/
초저온밸브/구동기
취급 품목

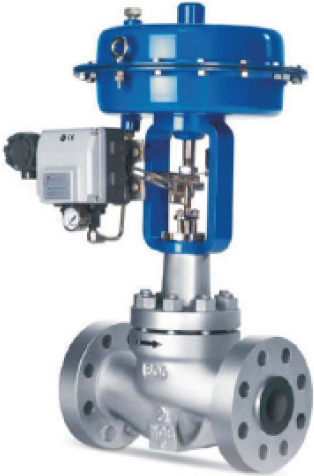

제어밸브(Control Valve)
- Body Size 3/4 ~ 10 inch
- Ratings ANSI Class 150 ~ 2500
- Connections Flanged, Butt-Weld, Socket Welded
- Body Material A216 Gr-WCB, A351 Gr-CF8, CF8M, Alloy Steel
- Plug & Seat-ring 304, 316, 420, 630 SST, 17-4PH, Hard Facing
- Actuators Handle/Diaphragm/Cylineder Type
- Options Positioner, SOV, Limit S/W, etc.

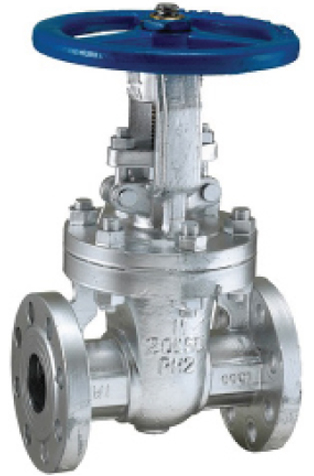

게이트밸브(Gate Valve)
- Body Size 3/4 ~ 10 inch
- Ratings ANSI Class 150 ~ 2500
- Connections Flanged, Butt-Weld, Socket Welded
- Body Material A216 Gr-WCB, A351 Gr-CF8, CF8M, Alloy Steel
- Disc Material 304, 316, 420, 630 SST, 17-4PH, Hard Facing
- Actuators Handle/MOV/Cylinder Type

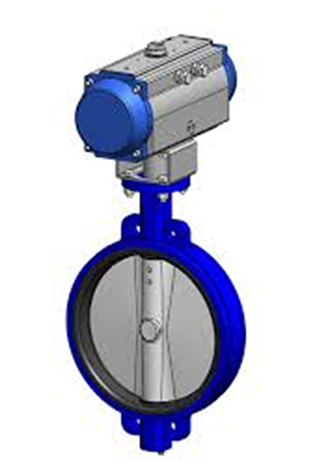

버터플라이밸브(Butterfly Valve)
- Body Size 1 ~ 10 inch
- Ratings ANSI Class 150 ~ 2500, API
- Connections Flanged, Wafer
- Body Material A216 Gr-WCB, A351 Gr-CF8, CF8M
- Disc Material 304, 316, 420, 630 SST
- Actuators Cylinder Type, Handle, Lever
- Options SOV, Indicator

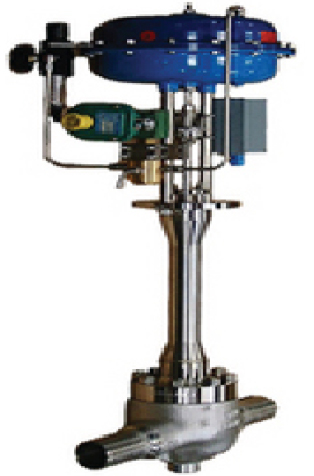

초저온밸브(Cryoenic Valve)
- Dimensions 3/4 ~ 10 inch
- RatingsANSI CLASS 150 ~ 2500
- ConnectionsFlanged, Butt-weld, Socket-welded
- Body MaterialA216 Gr-WCB, A351 GR-CF8, CF8M
- Plug & Seat-ring304, 316, 420, 630 SSTm 17-4PH, Hard Facing
- ActuatorsHandle / Diaphragm / Cylinder Type
- Temperature - 195 ~ + 195℃

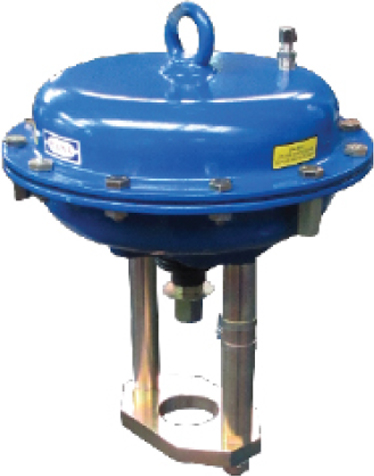

구동기 다이아프램형 (Actuator-Diaphragm)
- Size Range 1/2 ~ 6 inch
- Operating Pressure Range 1 ~ 5 bar
- Materials Carbon Steel, etc.
- Acc Pneumatic Diaphragm, Motor, Handle

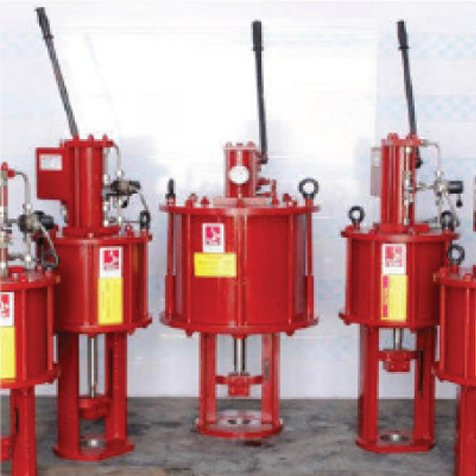

구동기 실린더형 (Actuator-Cylinder)
- Size Range 1/2 ~ 6 inch
- Operating Pressure Range 1 ~ 5 bar
- Materials Carbon Steel, etc.
- Acc Pneumatic Cylinder type
납품실적

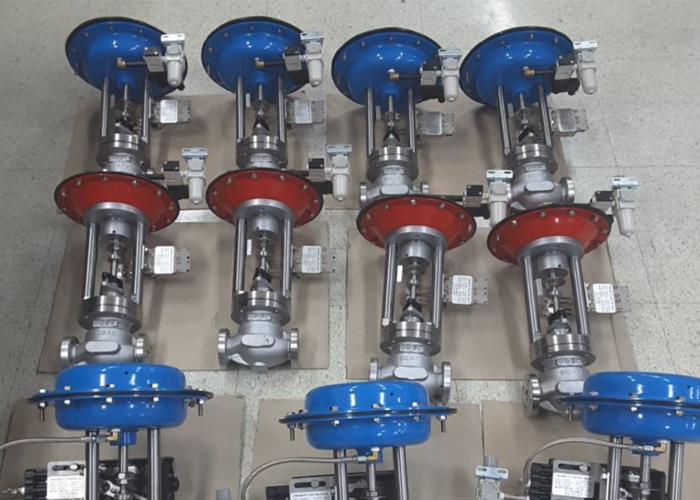

제어밸브 납품

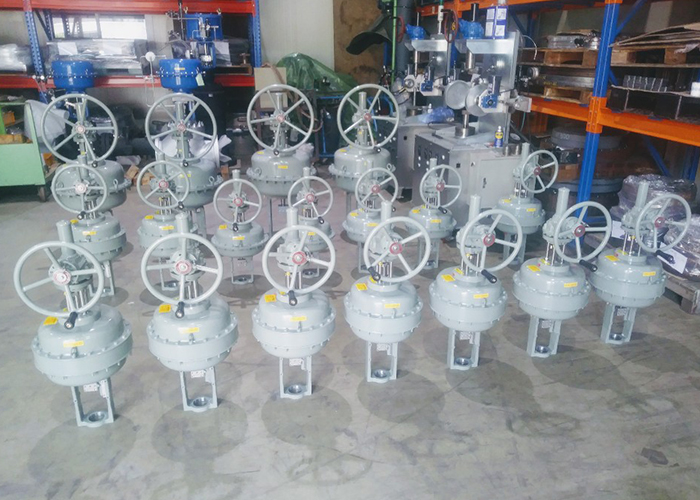

구동기 납품
